Start a Meeting

One can start a meeting from any room, simply click on the hyperlink in the Header. You'll be redirected to the pre-meeting UI, prompting you to fill in your name afterwhich you're in!

Remote participation is facilitated! (Ps: that's my friend holding up Oswald😁 in the second video stream)

Explore

• To have others join in, copy the invite link from the top and share (You can drop the link in the Room-Chat!)

• When a participant joins, it may take some seconds to see their video-stream.

• Just like any other Meeting functionality, features like mute/unmute, switch video on/off and share the screen are available.

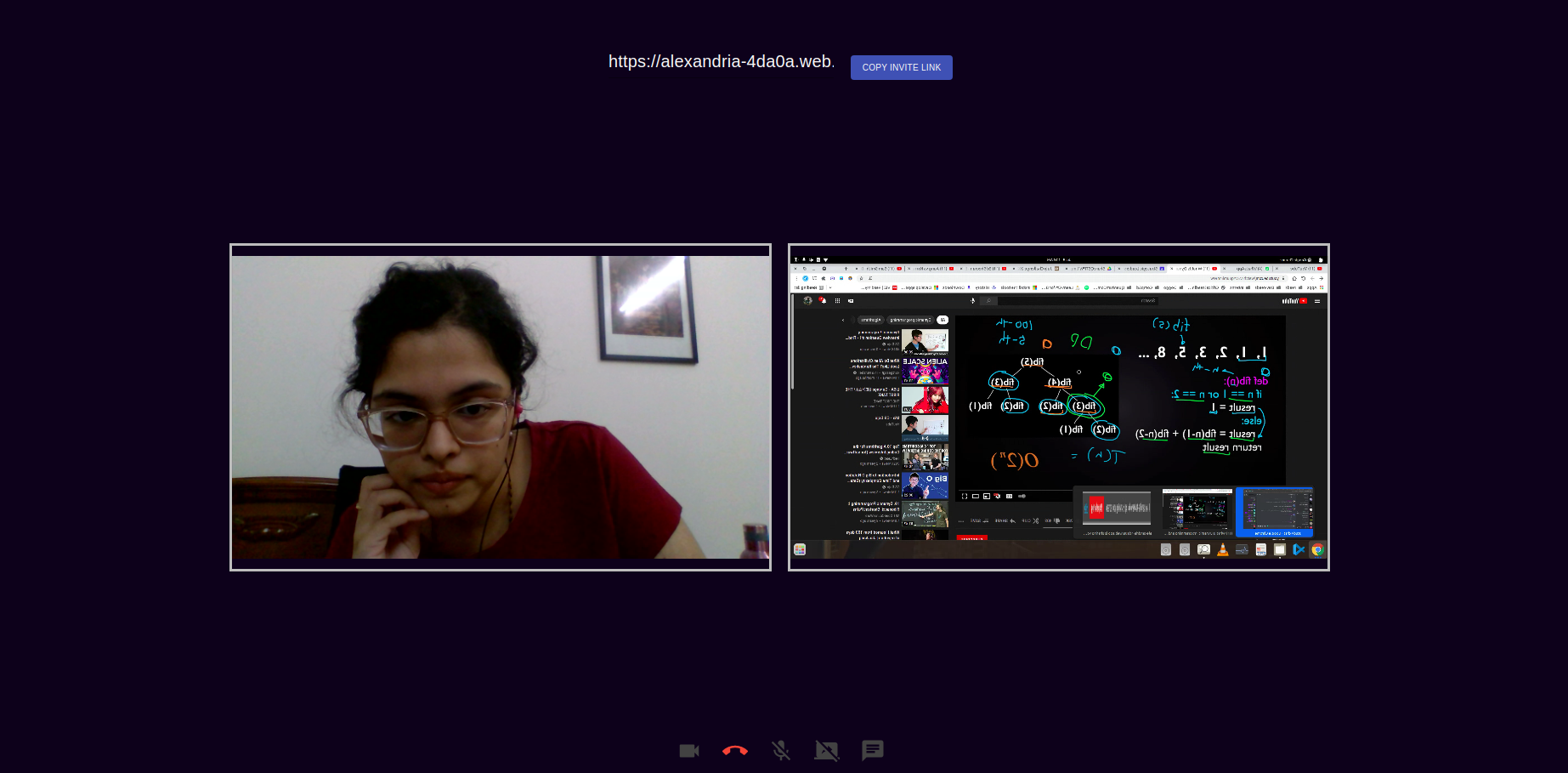

Share screen:

• There is an inbuilt chat functionality as well. The chats from a meeting are displayed as Meeting Logs in that particular Room's ChatBox after a meeting ends.

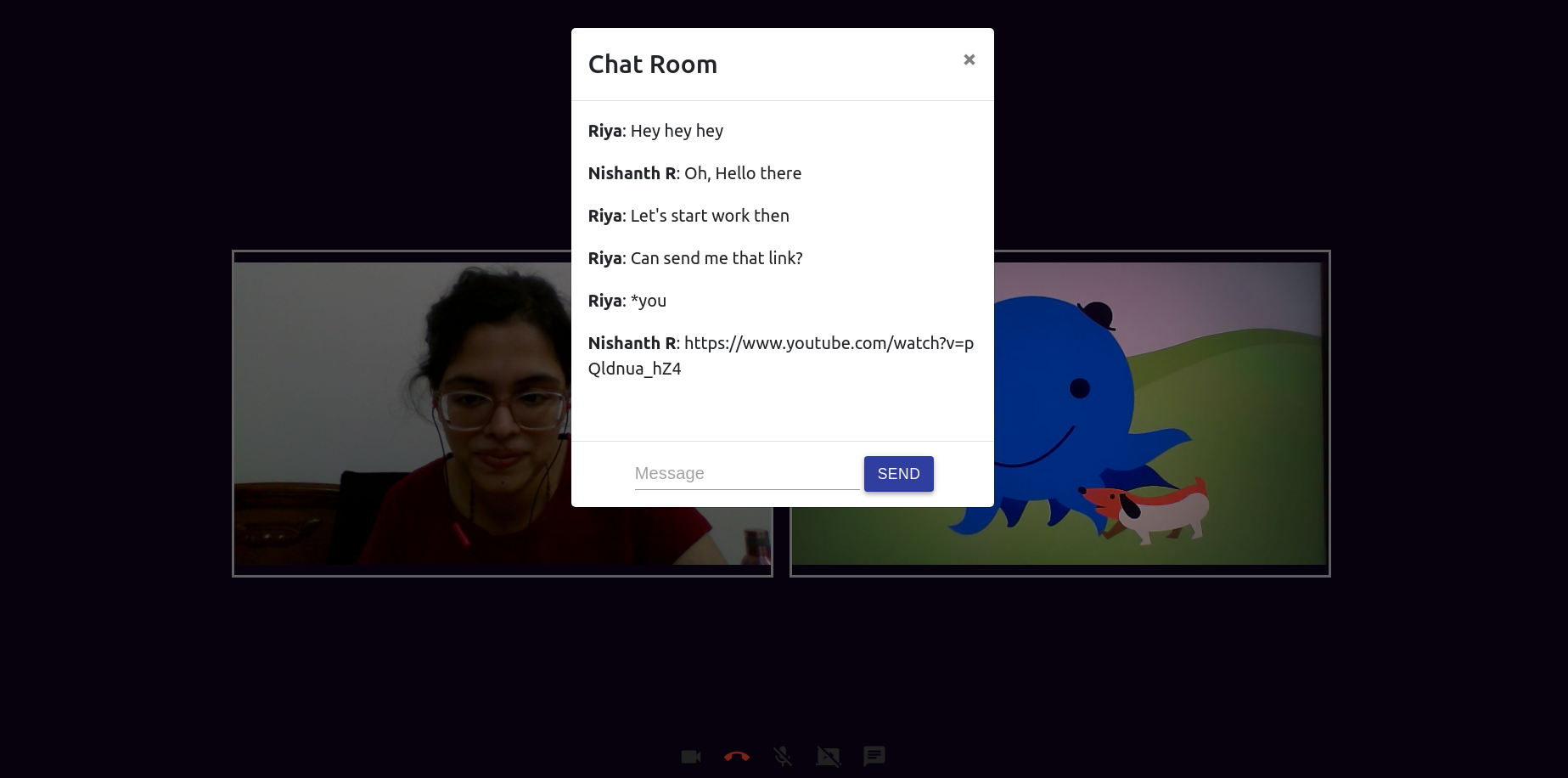

Chat functionality:

Working

• Using PeerJS and Socket.io to write server-side code in ExpressJS:

  const express = require("express");
  const app = express();
  app.use(express.json());
  var server = http.Server(app);
  var io = require("socket.io")(server, { secure: true, allowEIO3: true });
  const { ExpressPeerServer } = require("peer");

  const peerServer = ExpressPeerServer(server, {
  debug: true,
  });
  app.use("/peerjs", peerServer);
  socket.on("join-call", (path) => {
      if (connections[path] === undefined) {
      connections[path] = [];
      }
      connections[path].push(socket.id);

      timeOnline[socket.id] = new Date();

      for (let a = 0; a < connections[path].length; ++a) {
      io.to(connections[path][a]).emit(
          "user-joined",
          socket.id,
          connections[path]
      );
      }

      if (messages[path] !== undefined) {
      for (let a = 0; a < messages[path].length; ++a) {
          io.to(socket.id).emit(
          "chat-message",
          messages[path][a]["data"],
          messages[path][a]["sender"],
          messages[path][a]["socket-id-sender"]
          );
      }
  }


• In Client-side, socket.io-client handles requests. A snippet from /client/src/views/roomCall.js

        const io = require("socket.io-client");
        const server_url = "https://alexandria-server.azurewebsites.net";

        // when a new user joins call:
        connectToSocketServer = () => {
            console.log("want to connect");
            socket = io.connect(server_url, {
            secure: true,
            });

            socket.on("signal", this.gotMessageFromServer);

            socket.on("connect", () => {
            socket.emit("join-call", window.location.href);
            socketId = socket.id;

            socket.on("chat-message", this.addMessage);

            socket.on("user-left", (id) => {
                let video = document.querySelector(`[data-socket="${id}"]`);
                if (video !== null) {
                elms--;
                video.parentNode.removeChild(video);

                let main = document.getElementById("main");
                this.changeCssVideos(main);
                }
            });


• Remote Participation is configured in PeerJS with the help of STUN servers like so:

      const peerConnectionConfig = {
          iceServers: [
              {
              urls: [
                  "stun:stun01.sipphone.com",
                  "stun:stun.ekiga.net",
                  "stun:stun.fwdnet.net",
              ],
              },
          ],
          };


Troubleshooting

• Please be patient😄 while using the Meeting functionality, as I'm using a STUN server to facilitate remote user participation, and have written my own server-side code (rather than use a service like Jitsi, Vidyo, or Twilio)
